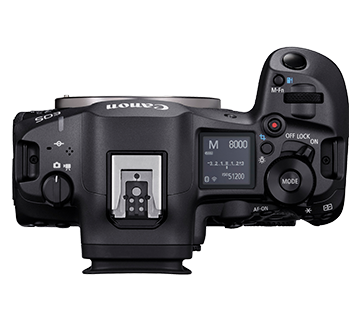

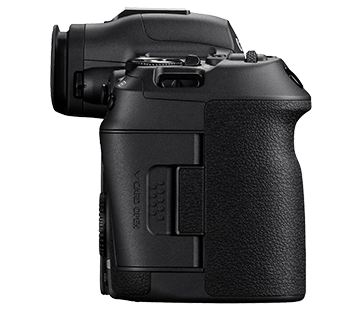

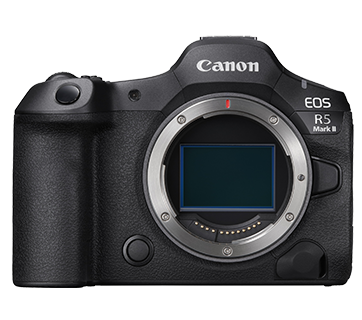

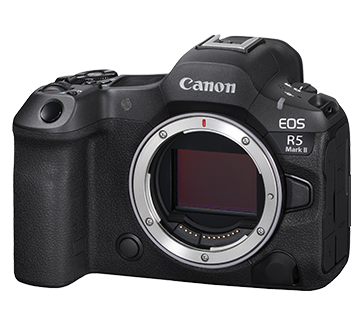

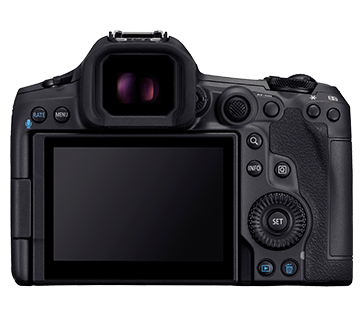

CANON R5II (BODY ONLY)

Specifications:

Lens Mount	Canon RF
Sensor Resolution	Actual: 50.3 Megapixel Effective: 45 Megapixel
Image Sensor	36 x 24 mm (Full-Frame) BSI Stacked CMOS

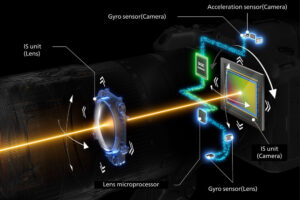

Image Stabilization	Sensor-Shift, 5-Axis
ISO Sensitivity Range	Photo 100 to 51,200 (Extended: 50 to 102,400)
Continuous Shooting	Electronic Shutter Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw) Mechanical Shutter Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw)
Internal Recording Modes	Raw 12-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps UHD 8K (7680 x 4320) at 23.98/25/29.97 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps
External Recording Modes	4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps
Media/Memory Card Slot	Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended] Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O	1x HDMI (Unspecified Signal) Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O	1x USB-C (5VDC at 1.5 A) Input
Other I/O	1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input) 1x Canon N3 Control Input 1x PC Sync Socket FlashSync
Wireless	2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0
Display Type	Articulating Touchscreen LCD
Battery Type	1x LP-E6P Rechargeable Lithium-Ion or 1x LP-E6NH Rechargeable Lithium-Ion or 1x LP-E6N Rechargeable Lithium-Ion

Imaging

Lens Mount	Canon RF
Sensor Resolution	Actual: 50.3 Megapixel Effective: 45 Megapixel
Image Sensor	36 x 24 mm (Full-Frame) BSI Stacked CMOS
Sensor Crop (35mm Equivalent)	Crop Factor: 1x Additional Modes: 1.6x *Additional Crop Occurs in Select Video Modes
Image Stabilization	Sensor-Shift, 5-Axis
Built-In ND Filter	No
Capture Type	Stills & Video

Exposure Control

Shutter Type	Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed	Electronic Shutter 1/32000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Mechanical Shutter 1/8000 to 30 Seconds
Bulb/Time Mode	Bulb Mode
ISO Sensitivity Range	Photo 100 to 51,200 (Extended: 50 to 102,400)
Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range	-3 to 20 EV
White Balance	Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting	Electronic Shutter Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw) Mechanical Shutter Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw)
Interval Recording	Yes
Self-Timer	2/10-Second Delay

Still Image Capture

Image Sizes	3:2 HEIF / JPEG / Raw 44.8 MP (8192 x 5464) 24 MP (6000 x 4000) 17.3 MP (5088 x 3392) 11.6 MP (4176 x 2784) 3.8 MP (2400 x 1600) 1:1 HEIF / JPEG 29.8 MP (5456 x 5456) 16 MP (4000 x 4000) 7.8 MP (2784 x 2784) 2.6 MP (1600 x 1600) 4:3 HEIF / JPEG 39.8 MP (7280 x 5464) 21.3 MP (5328 x 4000) 10.3 MP (3172 x 2784) 3.4 MP (2112 x 1600) 16:9 HEIF / JPEG 37.7 MP (8192 x 4608) 20.2 MP (6000 x 3386) 9.8 MP (4176 x 2344) 3.2 MP (2400 x 1344)
Aspect Ratio	1:1, 3:2, 4:3, 16:9
Image File Format	HEIF, JPEG, Raw
Bit Depth	14-Bit

Video Capture

Internal Recording Modes	Raw 12-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97/50/59.94 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps H.264/MP4/XF-AVC S/XF-HEVC S 4:2:2/4:2:0 8/10-Bit DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps UHD 8K (7680 x 4320) at 23.98/25/29.97 fps DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100/120 fps DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120/200/240 fps
External Recording Modes	4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94 fps UHD 4K (3840 x 2160) up to 59.94 fps
Fast-/Slow-Motion Support	Slow-Motion Only
Gamma Curve	Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Rec709, Rec2020
Recording Limit	No
IP Streaming	No
Built-In Microphone	Mono
Audio Recording	2-Channel 16-Bit 48 kHz AAC Audio 4-Channel 24-Bit 48 kHz LPCM Audio

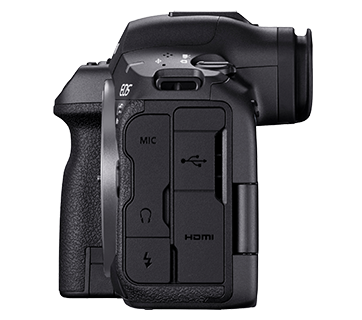

Interface

Media/Memory Card Slot	Slot 1: CFexpress Type B (CFexpress 2.0) [2 TB Maximum / VPG-400 or Faster Recommended] Slot 1: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O	1x HDMI (Unspecified Signal) Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O	1x USB-C (5VDC at 1.5 A) Input
Other I/O	1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input) 1x Canon N3 Control Input 1x PC Sync Socket FlashSync
Wireless	2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0
Mobile App Compatible	Yes: Android & iOS App Name: Canon Camera Connect Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)	GPS *Via Connected Smartphone

Monitor

Display Size	3.2″
Resolution	2,100,000 Dot
Display Type	Articulating Touchscreen LCD
Secondary Display	Top: Status Display

Viewfinder

Type	Built-In Electronic (OLED)
Size	0.5″
Resolution	5,760,000 Dot
Eye Point	24 mm
Coverage	100%
Magnification	Approx. 0.76x
Diopter Adjustment	-4 to +2

Focus

Focus Type	Auto and Manual Focus
Focus Mode	Continuous-Servo AF, Manual Focus, One-Shot AF, Single-Servo AF
Autofocus Points	Photo Phase Detection: 1053 Video Phase Detection: 975
Autofocus Sensitivity	-7.5 to +21 EV

Flash

Built-In Flash/Light	No
Maximum Sync Speed	1/250 Second
Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System	eTTL
External Flash Connection	Shoe Mount

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	85%

General

Battery Type	1x LP-E6P Rechargeable Lithium-Ion or 1x LP-E6NH Rechargeable Lithium-Ion or 1x LP-E6N Rechargeable Lithium-Ion
Shoe Mount	1x Hot Shoe
Tripod Mounting Thread	1x 1/4″-20 Female (Bottom)
Material of Construction	Magnesium Alloy
Dimensions (W x H x D)	5.4 x 3.9 x 3.5″ / 138.4 x 98.4 x 88.4 mm
Weight	1.5 lb / 670 g (With Battery, Recording Media) 1.3 lb / 588 g (Body Only)

More Features

The EOS R5 Mark II has set a new benchmark for videography and photography, with many new AF features made possible by the new Accelerated Capture System. The in-camera 8K 60p RAW and 4K 120p recording with Canon Log 2 & 3 redefine the workflow for professionals.

Capture spectacular 45MP images of decisive moments with Action Priority at up to 30 fps.

45MP Full-Frame Back-Illuminated Stacked CMOS Sensor
Accelerated Capture – DIGIC Accelerator & DIGIC X
In-Camera 8K 60p RAW & 4K 120p Recording with Canon Log 2 and 3
Shoot up to 30 fps with Eye Control AF & Action Priority Feature

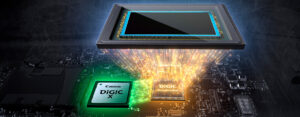

Accelerated Capture System

Introducing the latest DIGIC Accelerator that is paired with the DIGIC X image processor to instantly process huge amount of data from the new full-frame back-illuminated stacked CMOS sensor. Enjoy high-speed shooting of stellar quality images with less noise even at ISO 51,200.

Deep Learning Technology

The EOS R5 Mark II adopts Deep Learning that uses complex neural network and analysis algorithm. Together with the Accelerated Capture System, the EOS R5 Mark II achieves groundbreaking improvements in areas such as AF recognition & speed, noise reduction, in-camera upscaling and accuracy in auto exposure and white balance.

Electronic Shutter

Chief among the benefits of the new sensor-processor combination is the ability to shoot high-quality, high-resolution images at blazing speed, unlocking mural-sized moments of athletic brilliance, breaking news, or even history. The R5 Mark II has the power to record the ephemeral and commit it to memory on the biggest scale and in astounding detail.

Noise Reduction and In-Camera Upscaling

First and foremost, the R5 Mark II is a camera built for image-makers looking to maximize quality and flexibility. As such, the broad native ISO 100-51200 range suits working in a variety of lighting conditions and the DIGIC Accelerator enables the use of Neural Network Noise Reduction for cleaner images, especially at higher sensitivities.
